Discover our fabric building series

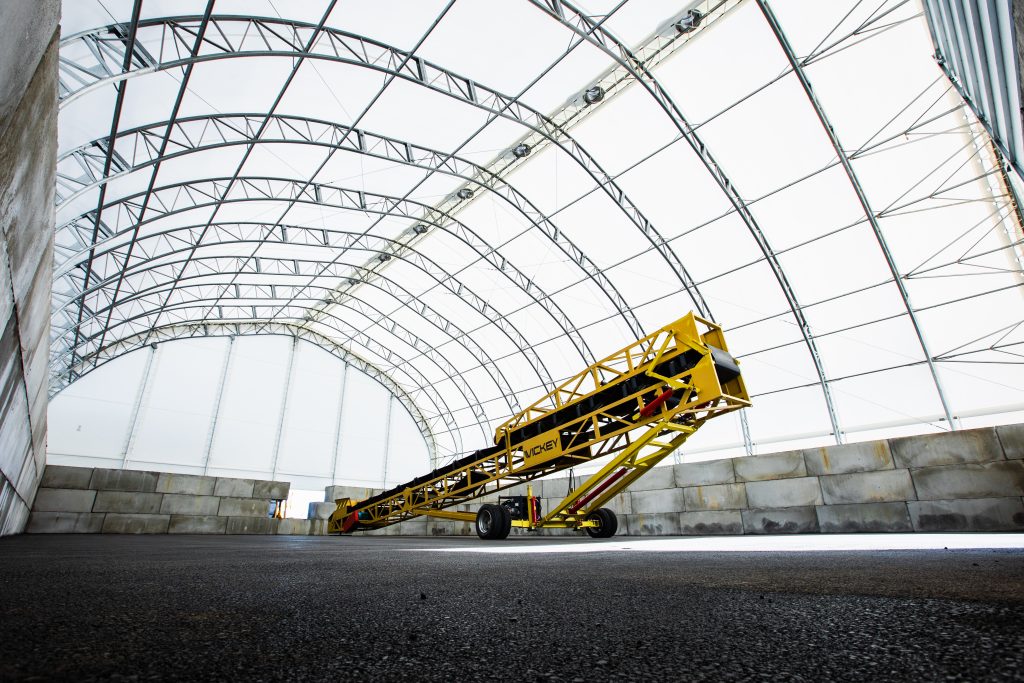

The MegaDome fabric building series includes a range of engineered clear-span structures designed for industrial, agricultural, and commercial applications. Each series is built to meet demanding climate conditions while maximizing interior space, durability, and long-term performance.
DB Series
DB Series specs
Spec | DB fabric building series |
|---|---|
Span range | 33′ to 100′ |
Typical applications | Applicable to almost every industry |
Profiles | Round or Gable |
Hardware | Hot-Dipped Galvanized (HDG) |
Foundations | Concrete pier /
Pre cast blocks & walls /
Concrete walls /
Helical anchors /
Sea containers |
Foundation Heights: | 0′ to 10′ |
Membrane | Standard 12oz High Density Polyethylene (HDPE) |
Options | Elite fabric upgrade / Mechanical Ventilation / |
Final engineering, loads, and foundation requirements depend on project location, soil conditions, intended use, and local codes.
Choosing the right roof profile
Arch-Profile
Widths: 33’ & 40’
Best when you want efficient snow shedding and simple interior volume
Great for general storage and equipment bays
Gable-Style Profile
Widths: 50’ to 160′
Best when you want more usable wall height and cleaner sidewall interfaces for doors, racking, or workflow zones
Great for workshops, loading patterns, and structured layouts

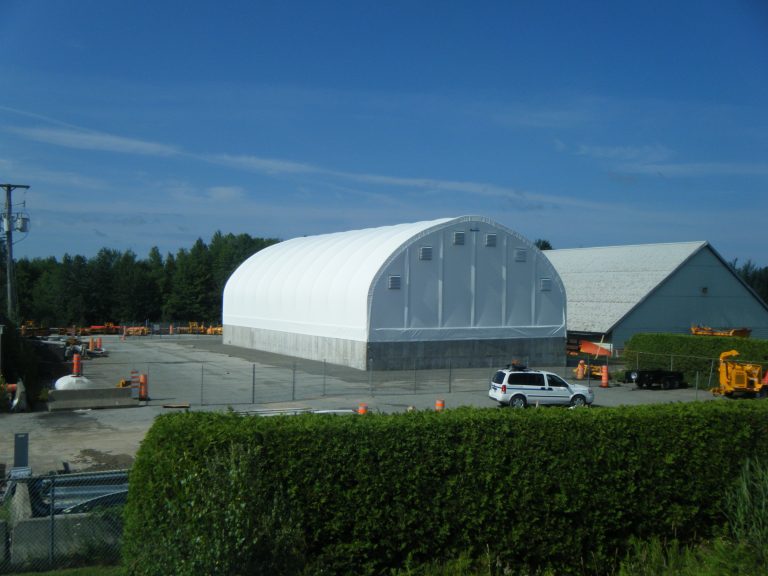

Typical DB configurations - Industrial
Configuration | Description |
|---|---|
Foundation | Concrete blocks or continuous deep |

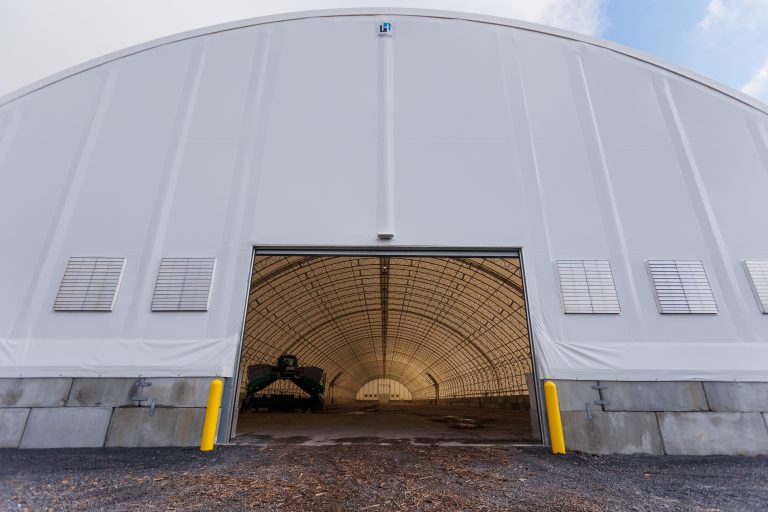

Front Wall | Large garage door |
Back Wall |

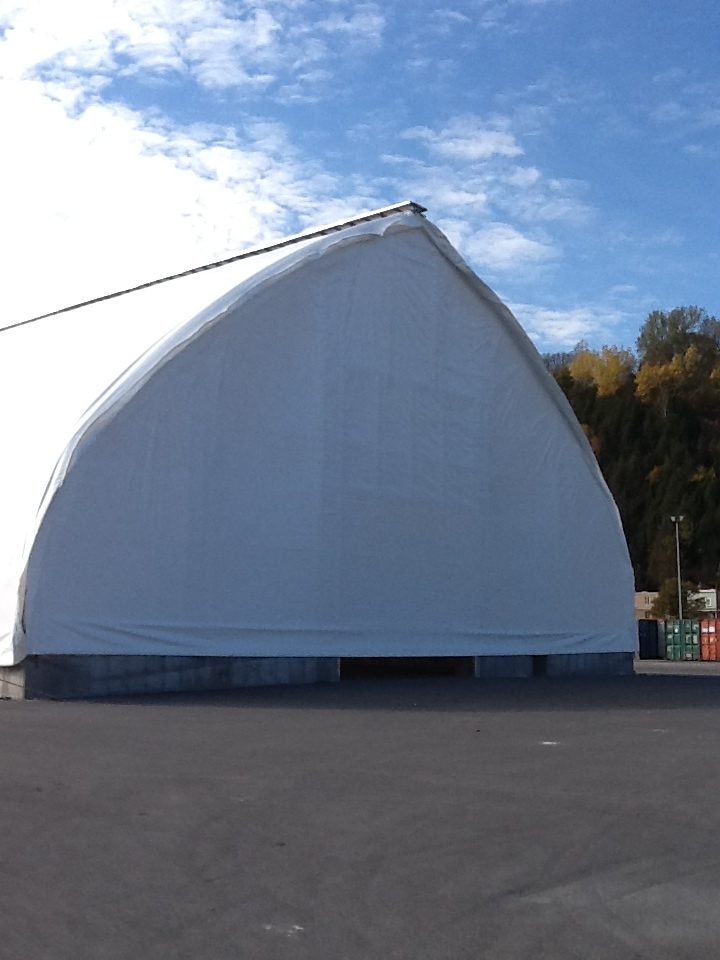

Closed end with ventilation shutters |
Membrane | Standard 12 oz – White |

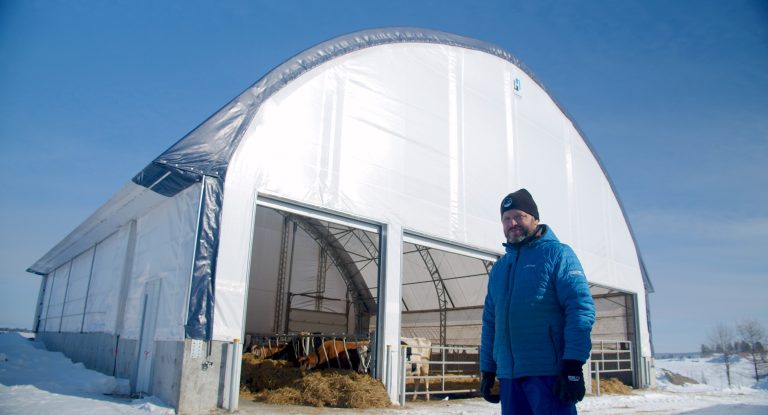

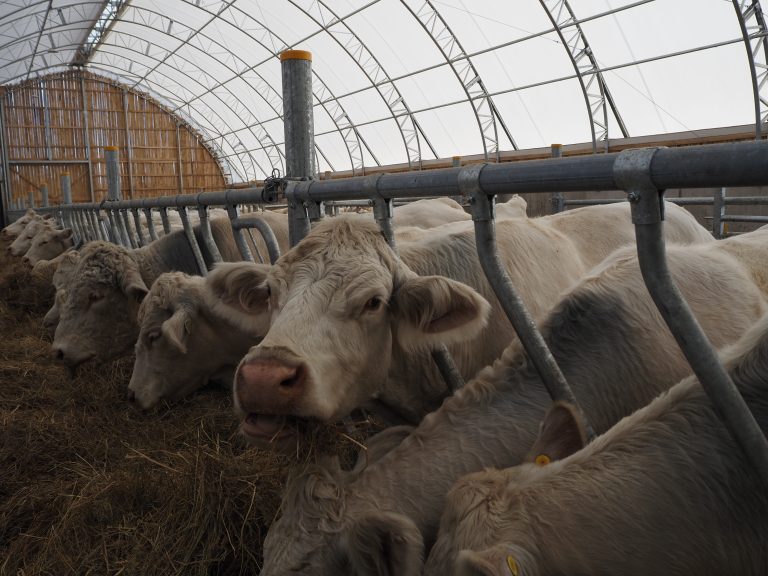

Typical DB configurations - Livestock
Configuration | Description |
|---|---|

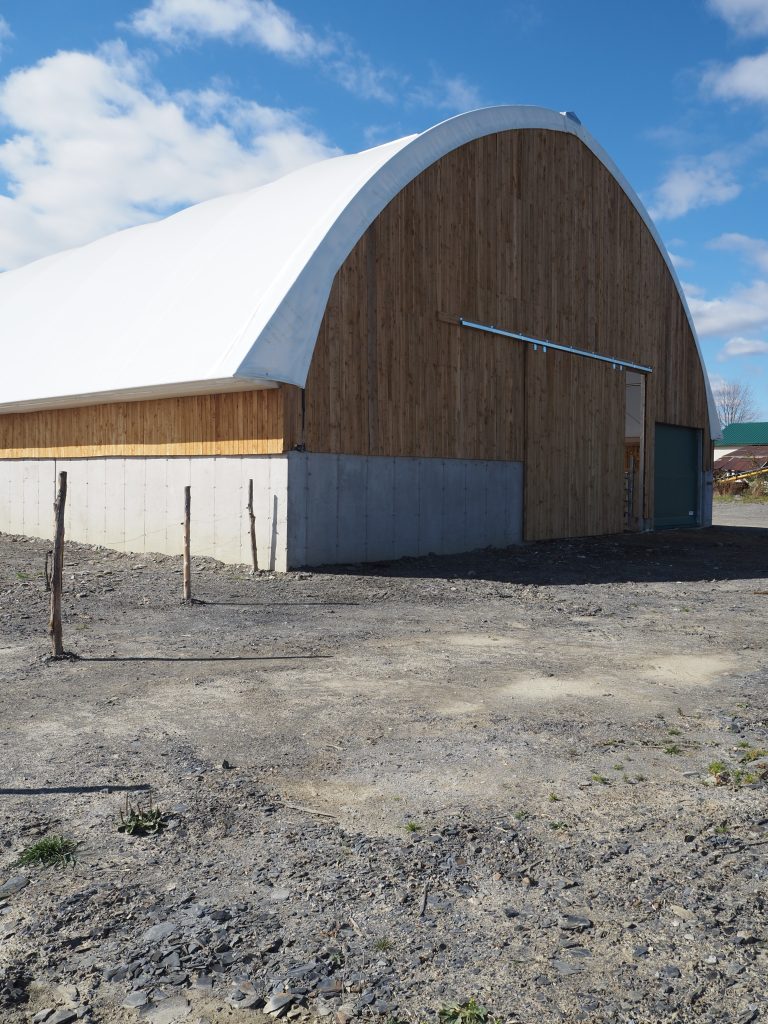

Foundation | Continuous Deep |
Front Wall | For garage door and ventilation shutters |
Back Wall |
Closed end with ventilation shutters |
Membrane | Agricultural Membrane 12 oz – White (30% light transmission) |
Side options | Opening for garage door |

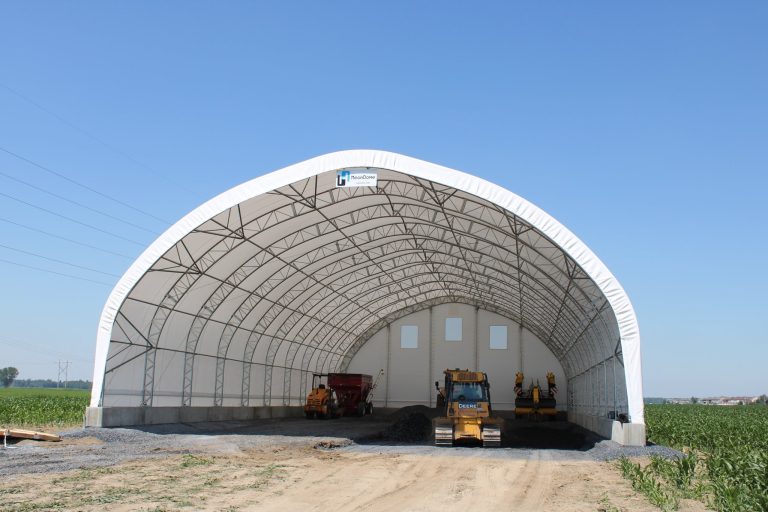

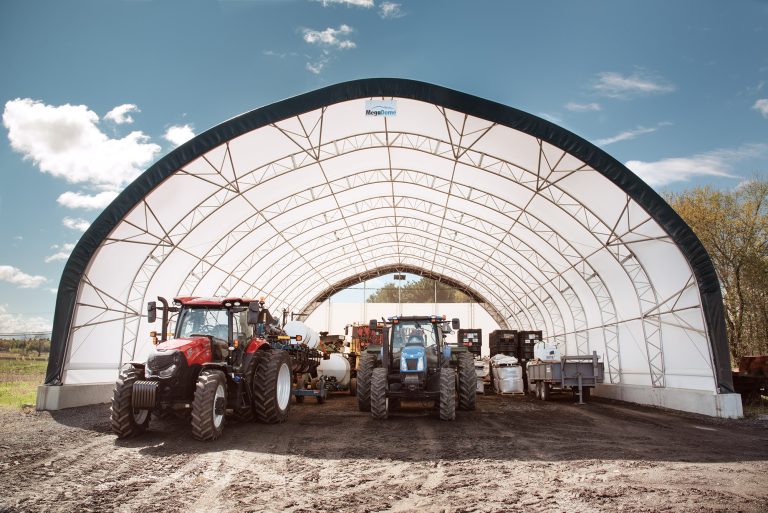

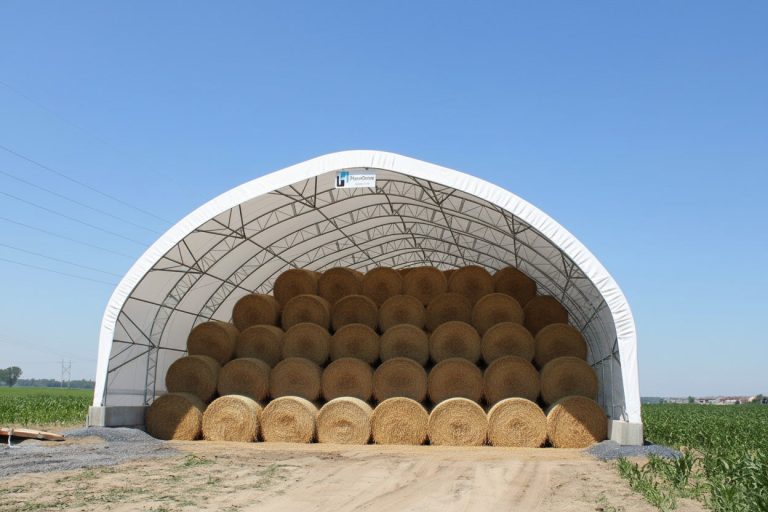

Typical DB configurations - Agricultural Storage
Configuration | Description |
|---|---|
Foundation | Concrete blocks |
Front Wall | Large opening |

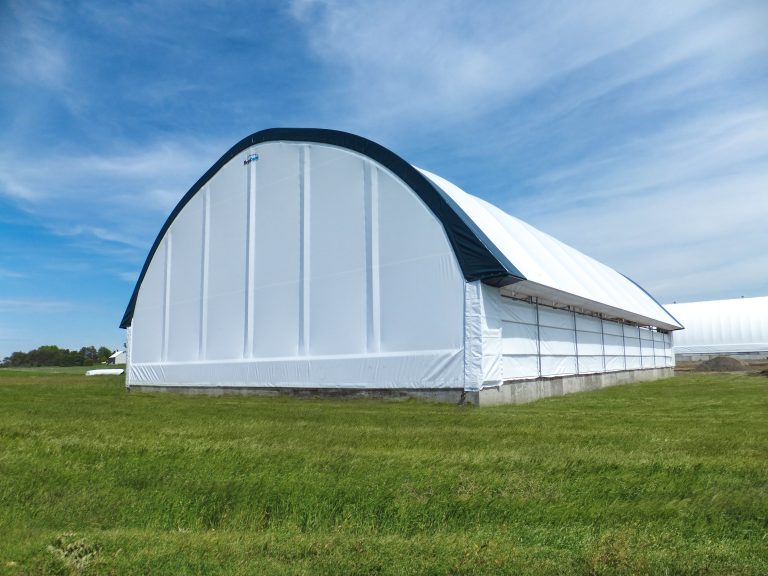

Back Wall | Closed |
Membrane | Standard 12 oz – White |

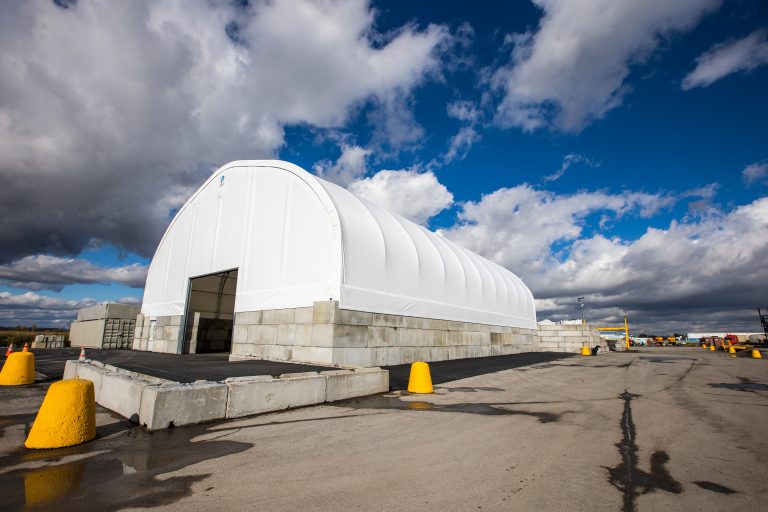

DB fabric building series - Fabric Building Projects
S100 Series
The S100 Series is built for projects where span and scale drive the decision. With widths from 100' to 160', S100 is ideal for large, high-throughput facilities that need major unobstructed interior space; without internal columns getting in the way of operations.
If you’re comparing series, choose S100 when you need big clearance, big volume, and big workflow: loading/unloading, bulk storage, heavy equipment circulation, or industrial capacity that has to stay operational year-round.
S100 Series specs
Spec | S100 fabric building series |
|---|---|
Span range | 100′ to 160′ |
Application | Large projects, high-volume operations |
Profiles | Gable |
Hardware | Hot-Dipped Galvanized (HDG) |
Foundations | Concrete pier /
Pre cast blocks & walls /
Concrete walls /
Helical anchors / |
Foundation Heights: | 0′ to 10′ |
Membrane | Standard 12oz High Density Polyethylene (HDPE) |
Options | Elite fabric upgrade / Mechanical Ventilation / |
Final engineering, loads, and foundation requirements depend on project location, soil conditions, intended use, and local codes.

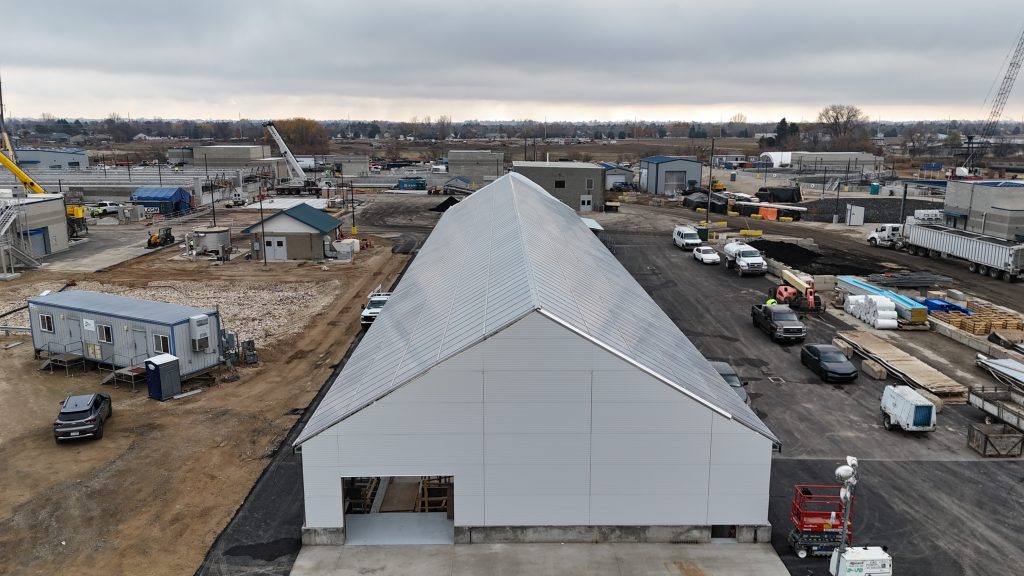

Typical S100 configurations
Configuration | Description |
|---|---|
Foundation | Continuous deep |

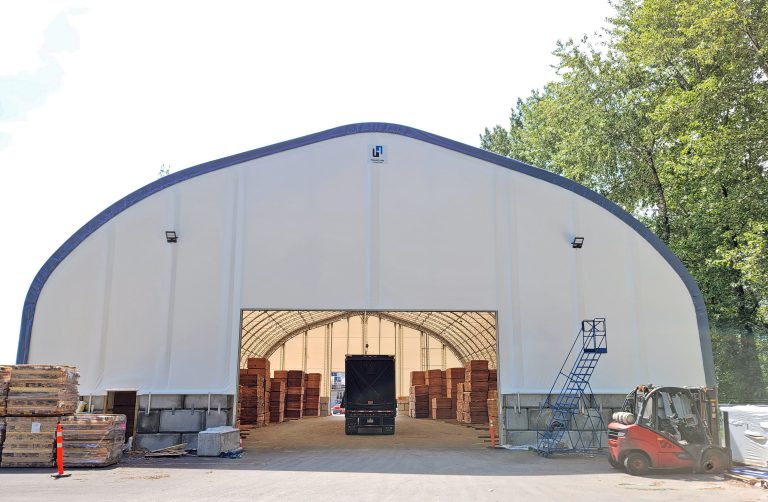

Front Wall | Large Garage Door |
Back Wall | Closed |

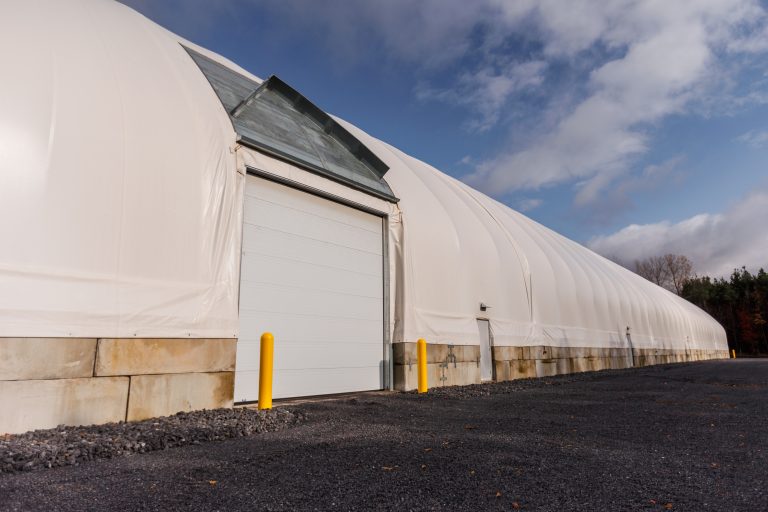

Side Options | Side Opening |
Membrane | Standard 12 oz – White |

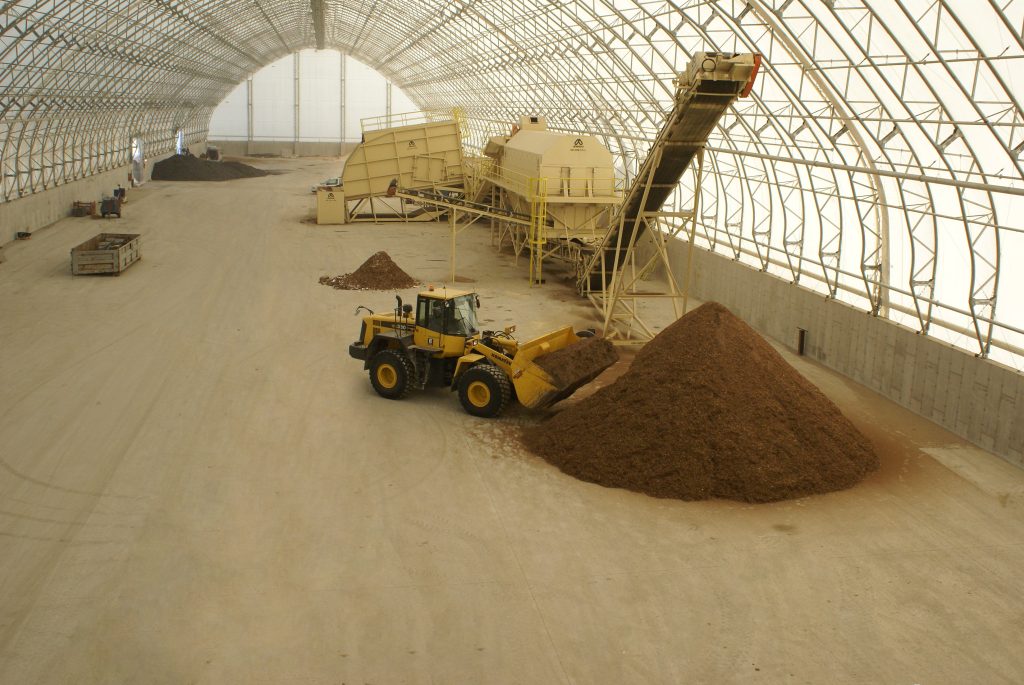

S100 fabric building series - Fabric Building Projects
AR Series
The AR Series is designed for projects where the building is part of a process, not just shelter. AR is a strong match for high-tech agricultural operations and specialized applications like mud drying, where airflow, clearance, internal layouts, and operational precision matter.
AR Series specs
Spec | S100 fabric building series |
|---|---|
Span range | 60′, 80′ or 100′ |
Application | High-tech or process-driven projects |
Profile | A-frame |
Hardware | Hot-Dipped Galvanized (HDG) |
Foundations | Concrete pier /
Pre cast blocks & walls /
Concrete walls /
Helical anchors |
Covering | Membrane or PCSS |
Final engineering, loads, and foundation requirements depend on project location, soil conditions, intended use, and local codes.
